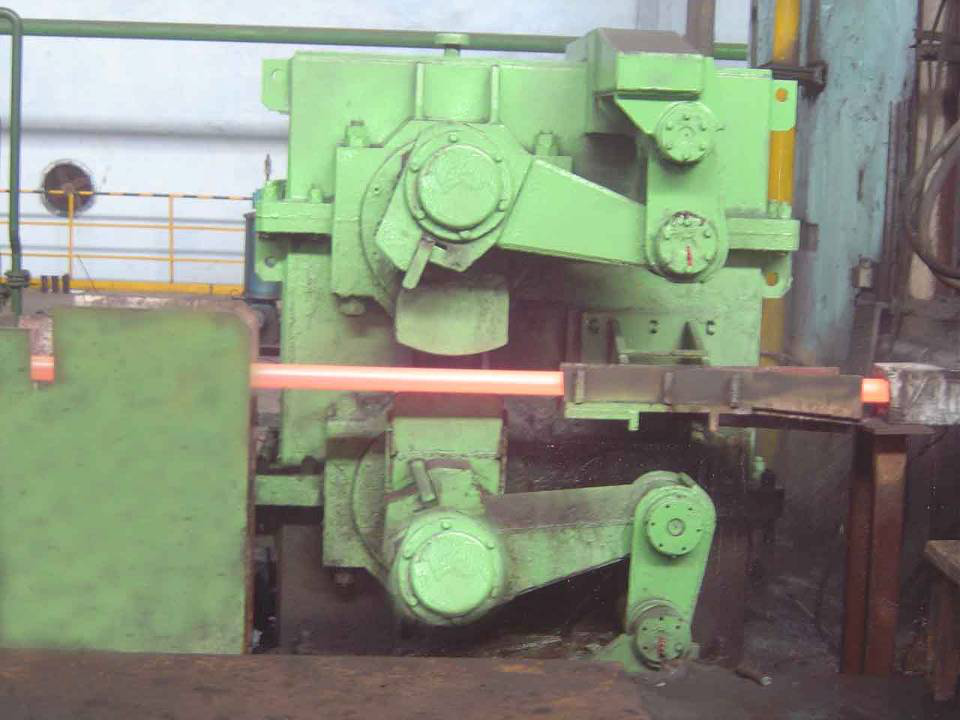

The 1# flying shear is located between the roughing mill and intermediate rolling mill. For cutting head, cutting tail of coming bar,as well accident chopping.

The Technical Specification are as follows

  • Type: crank type, start-stop working system
  • Function: cutting head, tail and accident chopping
  • Maximum shear section: 5160 mm2
  • Shearable rolling speed: 0.5~1.35m/s
  • Shear temperature: ≥850℃
  • DC motor 1 set
  • Motor model: ZTFS-355-42
  • Work rate: 355KW
  • Motor speed: 500r/min
