LONG PRODUCT HOT ROLLING MILL

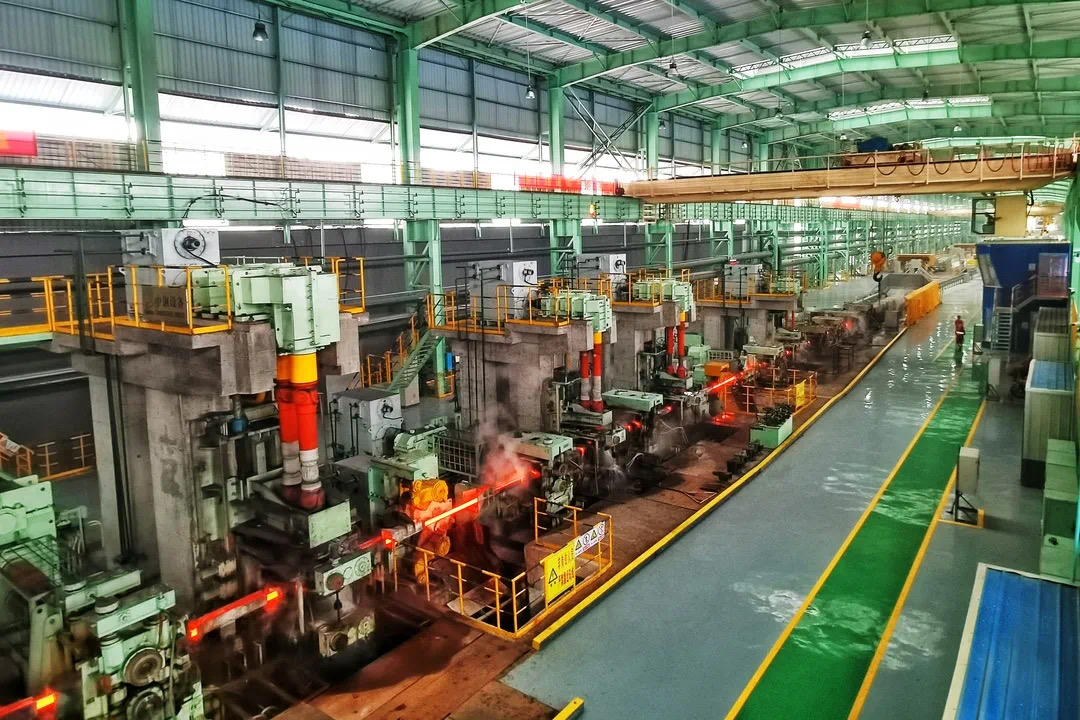

Continuous Casting and Rolling Bar or Rebar from Steel Scrap

Continuous Casting and Rolling Bar or Rebar Production Line(Steel Scrap to Billet to Bar or Rebar): Steel scrap-Melting furnace-Continuous casting machine(CCM)-Roughing Mill Train-Shear(Cut head,tail)-Intermediate Rolling mill Train-Shear(Cut head,tail)- Pre-water Cooling System-Finishing Mill Train- TMT Quenching System- Multi-lengths flying Shear-Cooling Bed-Dividing shear-Roller table-Inspection-Collection table-Bundling-Roller table-Weighing,Collect,Label- Rebar bundles to warehouse Raw Material: Steel Scrap to Billet Billet Size: 100X100,120X120,130X130,150X150,160X160,180X180mm etc. Hour Capacity: 20tons/hour to 100tons/hour Final Product: 8.0-40mm(max dia up to 100mm) round bar and rebar in straight

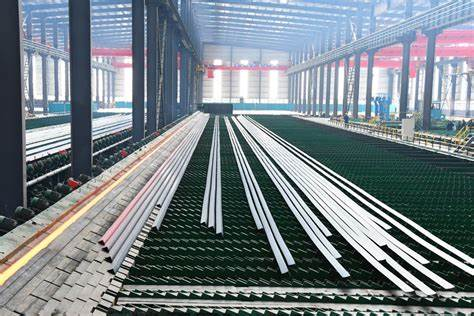

Continuous Casting and Rolling Section Steel from Steel Scrap

in LONG PRODUCT HOT ROLLING MILL

Section Steel Production Line(Steel Scrap to Billet or Slab to Section Steel): Section Steel Production Line(Steel Scrap to Billet or Slab to Section Steel): Steel scrap-Melting furnace-Continuous casting machine(CCM)-Roughing Mill Train-Saw(Cut head,tail)-Intermediate Rolling mill Train-Saw(Cut head,tail)- Finishing Mill Train- Hot saw(cut head,tail)-Cooling Bed-Inspection-Collection table-Weighing,Collect,Label- Warehouse. Raw Material: Steel Scrap to Billet or Slab Billet Size: 120x120~450x450mm billet Slab Size: 75~300X700~2050mm slab Hour Capacity: 20tons/hour to 100tons/hour Final Product: Steel rail, I-beam, channel, angle, sheet pile, Z-beam, flat ball, L-beam,track steel and other cross-section profile steel.

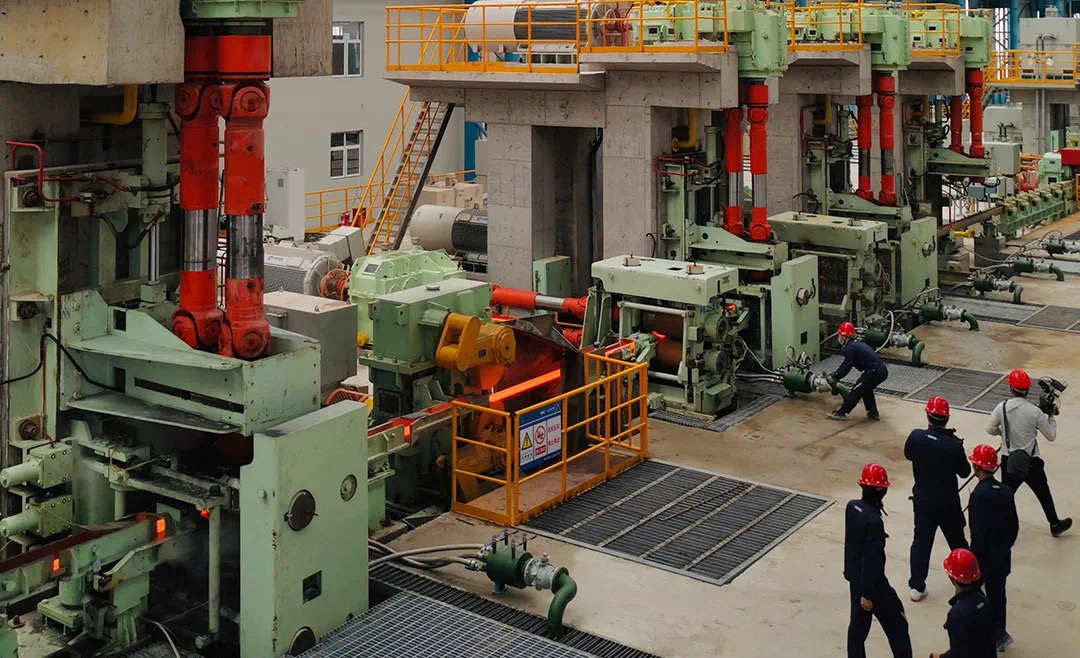

Continuous Casting and Rolling Wire Rod or Rebar Coil from Steel Scrap

in LONG PRODUCT HOT ROLLING MILL

Continuous Casting and Rolling Wire Rod or Rebar in Coil Production Line(Steel Scrap to Billet to Wire Rod or Rebar in Coil): Steel scrap-Melting furnace-Continuous casting machine(CCM)-Roughing Mill Train-Shear(Cut head,tail)-Intermediate Rolling mill Train-Shear(Cut head,tail)-Pre-finishing Mill Train-Shear -Finishing mill train(Wire Rod Block Mill Train)-Water Cooling device-Pinch roll-Laying head unit-Air cooling conveyor-Collection station-PF line-Compactor machine(Auto)-Weigh-Unloading coils-Warehouse. Raw Material: Steel Scrap or Billet Billet Size: 100X100,120X120,130X130,150X150,160X160,180X180mm etc. Hour Capacity: 20tons/hour to 100tons/hour Final Product: 5.

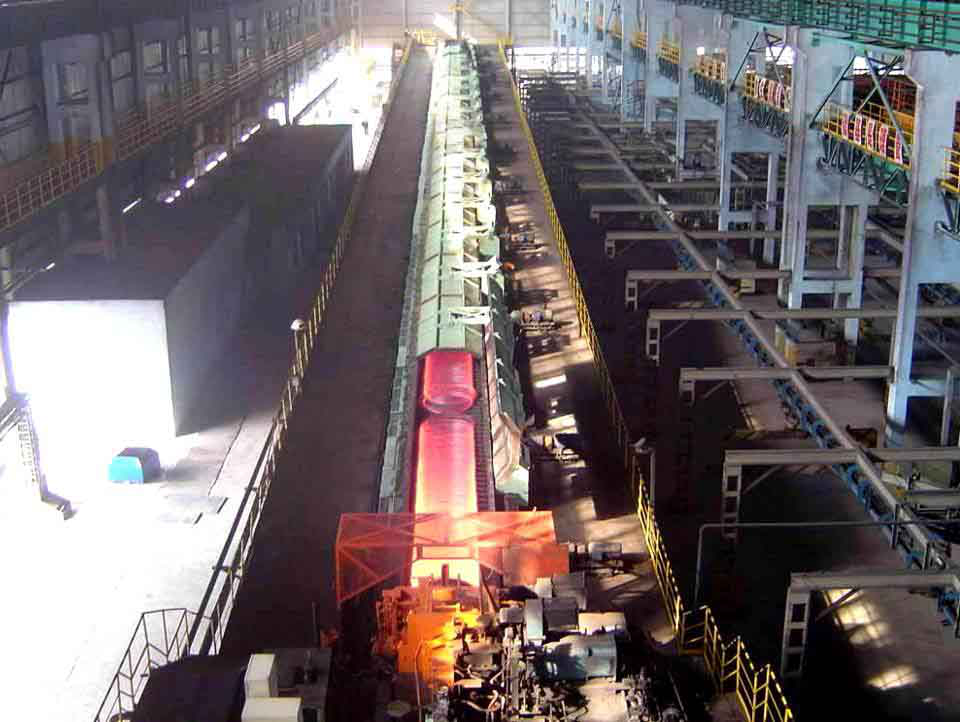

Continuous Rolling Bar or Rebar from Billet

in LONG PRODUCT HOT ROLLING MILL

Continuous Rolling Bar or Rebar Production Line(Billet to Bar or Rebar): Cold Billet- Heating Furnace-Roughing Mill Train-Shear(Cut head,tail)-Intermediate Rolling mill Train-Shear(Cut head,tail)- Pre-water Cooling System-Finishing Mill Train- TMT Quenching System- Multi-lengths flying Shear-Cooling Bed-Dividing shear- Roller table-Inspection-Collection table-Bundling-Roller table-Weighing,Collect,Label- Rebar bundles to warehouse. Raw Material: Billet 100X100,120X120,130X130,150X150,160X160,180X180mm etc. Hour Capacity: 20tons/hour to 100tons/hour. Final Product: 8.0-40mm(max dia up to 100mm) round bar and rebar in straight Material: Carbon Steel, Carbon Structural Steel, Low Alloy Steel, Valve Steel,Tool Steel, Cold Heading Steel,Spring Steel,Stainless Steel, Welding Steel etc.

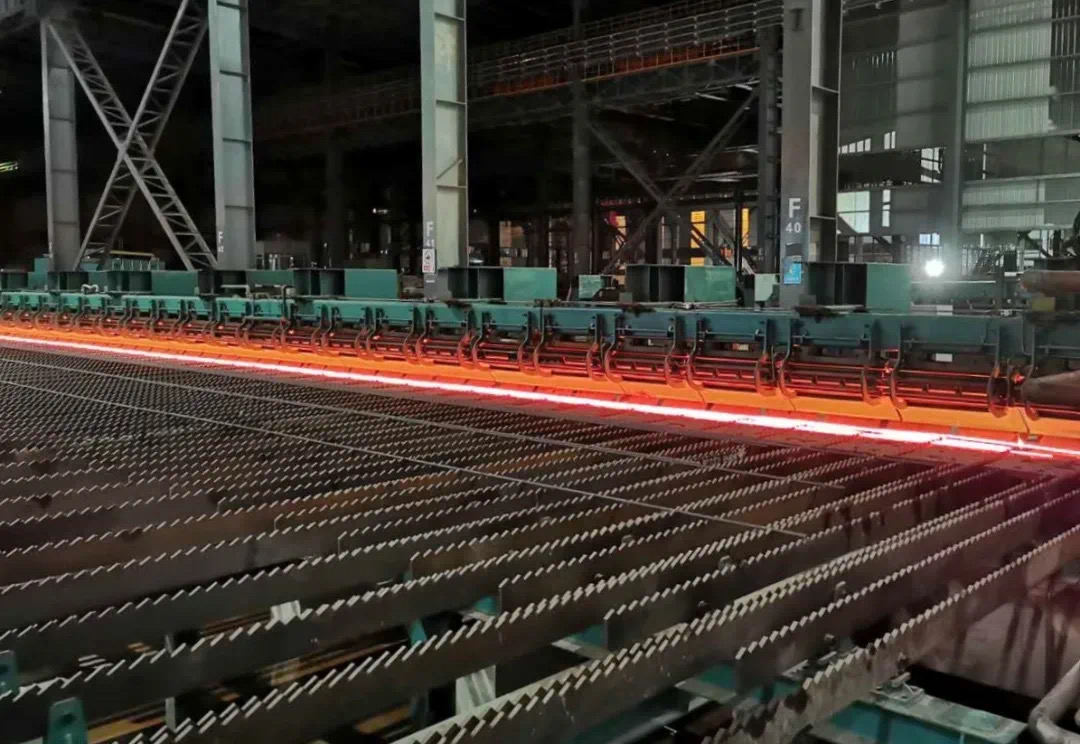

Continuous Rolling Wire Rod or Rebar Coil from Billet

in LONG PRODUCT HOT ROLLING MILL

Continuous Rolling Wire Rod or Rebar in Coil Production Line(Billet to Wire Rod or Rebar in Coil): Cold Billet- Heating Furnace-Roughing Mill Train-Shear(Cut head,tail)-Intermediate Rolling mill Train-Shear(Cut head,tail)-Pre-finishing Mill Train-Shear -Finishing mill train(Wire Rod Block Mill Train)-Water Cooling device-Pinch roll-Laying head unit-Air cooling conveyor- Collection station-PF line-Compactor machine(Auto)-Weigh-Unloading coils-Warehouse. Raw Material: Billet 100X100,120X120,130X130,150X150,160X160,180X180mm etc. Hour Capacity: 20tons/hour to 100tons/hour. Final Product: 5.5-20mm wire rod and rebar in coil Material: Carbon Steel, Carbon Structural Steel, Low Alloy Steel, Valve Steel,Tool Steel, Cold Heading Steel,Spring Steel,Stainless Steel, Welding Steel etc.

Rolling Section Steel from Steel Scrap

in LONG PRODUCT HOT ROLLING MILL

Section Steel Production Line(Square Billet or Slab to Section Steel): Steel Billet or Slab- Heating furnace- Roughing Mill Train- Saw(Cut head,tail)- Intermediate Rolling mill Train-Saw(Cut head,tail)- Finishing Mill Train- Hot saw(cut head,tail)-Cooling Bed-Inspection-Collection table-Weighing,Collect,Label- Warehouse. Raw Material: Square Billet or Slab Billet Size: 120x120~450x450 Square Billet Slab Size: 120x120~450x450mm billet Hour Capacity: 20tons/hour to 100tons/hour Final Product: Steel rail, I-beam, channel, angle, sheet pile, Z-beam, flat ball, L-beam,track steel and other cross-section profile steel.
